Disc Brake Analysis Steady State Thermal (ANSYS)

Disc Brake Analysis Steady State Thermal (ANSYS):-

To perform this project/analysis you have to follow some steps as follows :-

Step 1. Starting a new project.

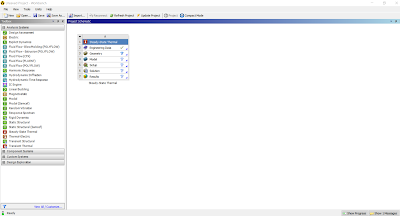

Start the New Project


Step 2. Importing the object. (you can either import or you may can design using design moduler here).

Import or design the object

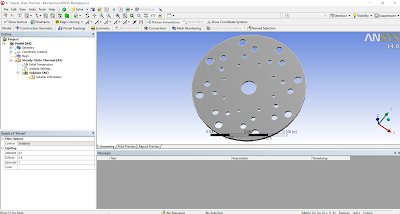

The imported or Designed object



Step 3. Mashing the Object.

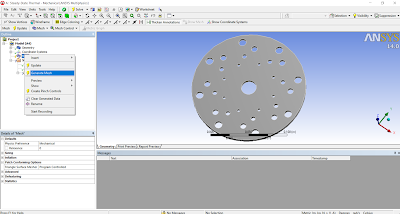

Generating mash


Mashed Object


Step 4. Giving the required information which needed to solve the problem.

Giving the Temperature

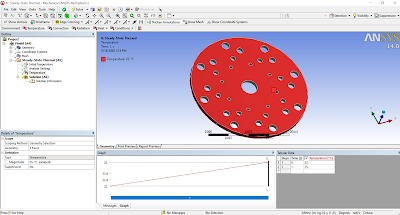

Temperature given


Temperature given 2

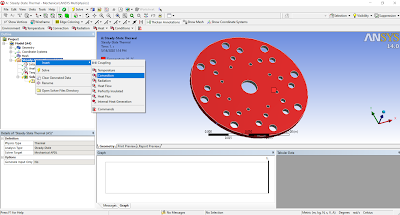

Starting to give the "Convection"

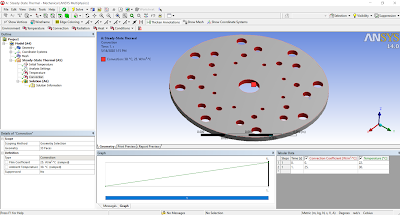

After giving the "Convection"

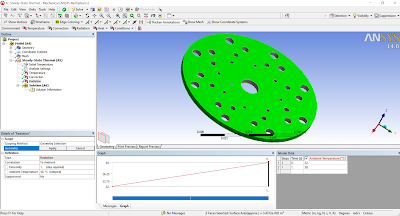

Giving it the "Radiation"

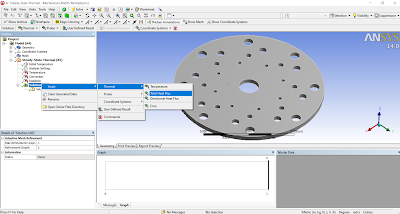

Step 5. Giving the Solution which required to be calculated.

Required Result Given:- Total Heat Flux



Step 6. solving the project.

Step 7. getting the solution from the reports.

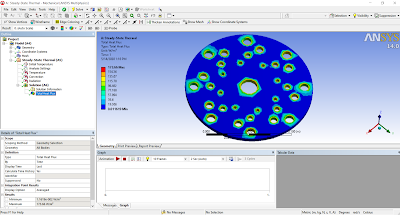

The Required Solution (Total Heat Flux)
